Part Number: NX-603D-LED / Vendor ID Number: 104 / Custom:

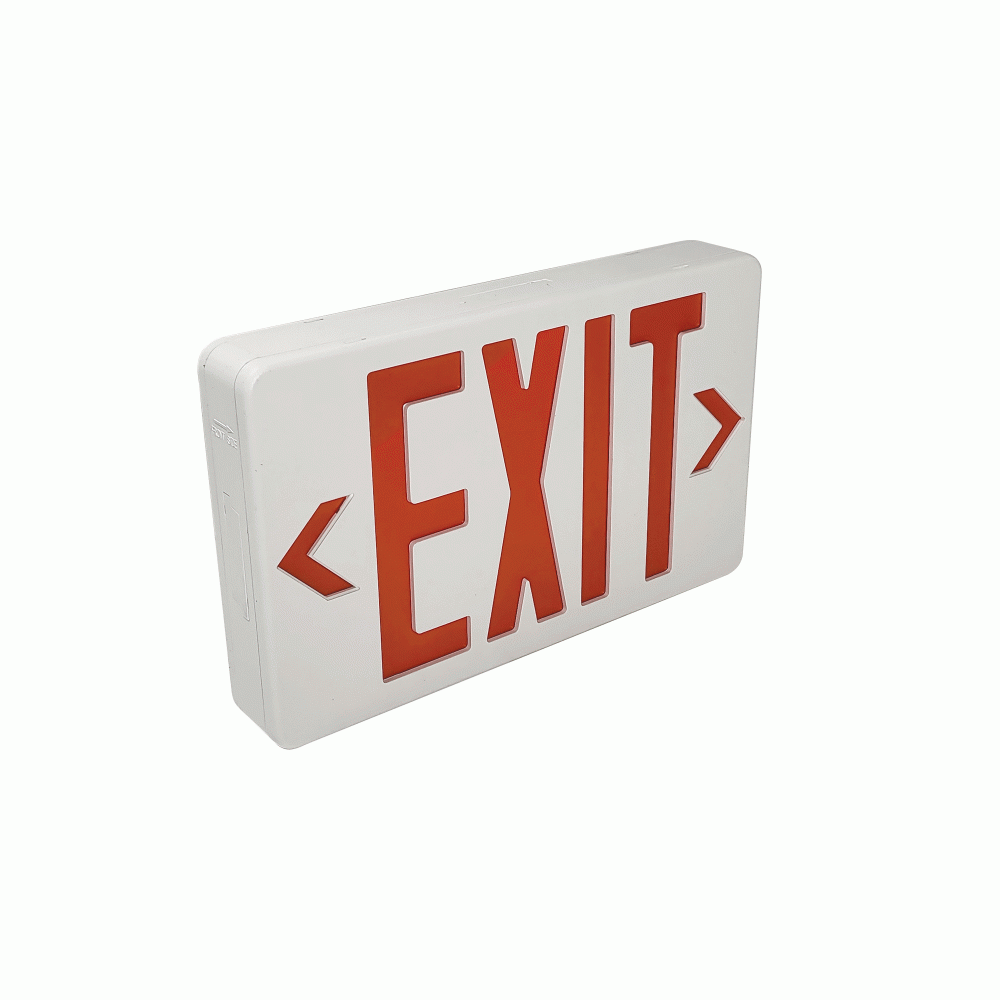

Dual Color LED Exit Sign with Battery Backup, Selectable Red or Green Letters, White Housing

Dual Color LED Exit Sign with Battery Backup, Selectable Red or Green Letters, White Housing
by Nora

48
51
Pack Of: 1
1 In Stock
Qty
Product Specification
Dimensions
Height: 2.13"
Width: 7.25"
Finish
White
Product Overview
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.

LED Source: Internal switch changes the color of LEDs from Green to Red

Colored Filters: Green and Red Filters are included with each sign

Face: Double Face and Blank Face included

Finish: White

Mounting: Wall, Side, or Ceiling Mounted. Mounting hardware and canopy included

Input Voltage: 120V/277V input

Battery: 3.6V 300mAh NiCad (nickel-cadmium)

Testing: The manual test switch and indicator light are located on the bottom of the sign

Accessories: NEG-60 (Wet Location Enclosure for Wall Mounting only)

Listings:
UL Listed for Damp Locations
NFPA
Certified to the energy efficiency standards of California Title 20
Product Availability
    Item appears to be in stock and ready to ship
Finish:
Additional Information
2.35
Info & Guides
Technical Details
Details
Category:
Utility
Subcategory:
Exit Signs
Finish:
White /vendors/vendorImages white.jpg
Category:
Exit / Emergency
Product Line:
5010
Est. Shipping Wt.:
4
Length:
11.75
Ship Carton Height:
2.375
Ship Carton Length:
12.125
Ship Carton Width:
7.5
Weight:
2.15
Battery Quantity:
1
Battery Type:
Nickel- Cadmium
Contains Battery:
Y
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
17
Master Box L:
16
Master Box Qty:
12
Master Box W:
14
Master Box Wt.:
30
Product Family:
EXIT
Safety Listing:
UL 924, NFPA, Title 20
Wattage:
3W
Manufactured By:
Nora
